Product Attributes:
Household computerized commercial embroidery machine single head
The single-head design simplifies setup, allowing even beginners to quickly get started.
Supports multiple embroidery formats, enabling stable embroidery on various materials such as clothing and caps.
Whatapp:+86 18322274128
Email:jcdt04@tjjc-carpet.com

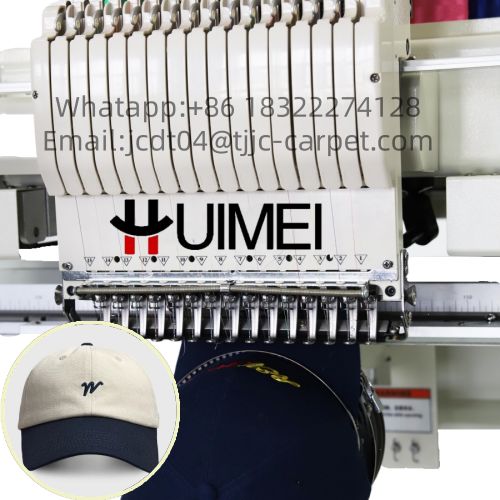

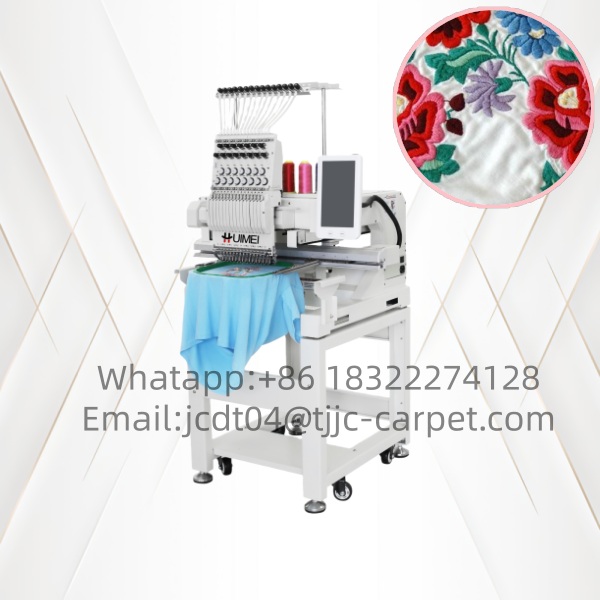

This single head embroidery machine is a high-performance, multi-functional, integrated intelligent embroidery device suitable for pattern embroidery on various fabrics. The machine features a single-head design, supporting 12-needle/15-needle configurations, with 12 needles as the standard configuration. The embroidery area reaches 600×400mm, meeting the needs of small to medium-sized embroidery operations. The machine integrates flat embroidery, cap embroidery, and garment embroidery, equipped with a 10.1-inch touchscreen computer screen for easy operation and responsive performance. It is suitable for embroidery processing of various products such as clothing, home furnishings, and caps.
CORE ADVANTAGES
1. High Efficiency and Stability: Maximum speed reaches 1200 rpm, recommended operating speed 1000 rpm, maximum 800 rpm for hat embroidery, smooth operation, and low noise.
2. Professional Configuration:
· Rotary hook uses a Japanese Hirose black-heart rotary hook, highly durable and producing neat stitches;
· Needles are Groz brand, supporting sizes 9, 10, 11, 12, and 14, with size 11 being the most commonly used;
· Computer system uses Ruineng electronic control, offering fast response and strong compatibility.
3. Multifunctional: Supports three modes: flat embroidery, cap embroidery, and garment embroidery, offering versatility and wide applicability.
4. Large Capacity Storage: Can store up to 1 million stitch patterns, supporting simultaneous storage of 800 patterns for easy mass production.
5. Energy Saving and Environmentally Friendly: The machine consumes only 175W of power and supports a wide voltage range of 110-240V, adapting to different regional power environments.
FUNCTION DESCRIPTION
| Function Type | Description |

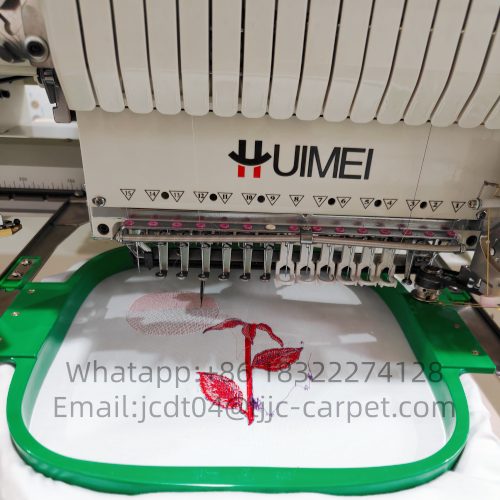

| Flat Embroidery | Suitable for flat fabrics, with a large embroidery area, ideal for areas such as the front, back, and cuffs of garments. |
| Hood Embroidery | Equipped with a dedicated hat holder, stand, and frame; embroidery area is 270×60mm; suitable for baseball caps, flat caps, etc. |
| Garment Embroidery | Equipped with 6 garment embroidery frames, supports multiple sizes, suitable for embroidery on T-shirts, polo shirts, jackets, and other garments. |
| 3D Embroidery | Can use 3D adhesive materials to achieve a raised embroidery effect, enhancing visual depth. |
| Multi-Format Support | Compatible with multiple mainstream embroidery pattern formats such as DST, EMB, DSB, and ZSK. |
PRODUCT FEATURES
1. Flexible Embroidery Area: In addition to the standard 600×400mm, various larger travel sizes are available, including 350×230mm, 500×300mm, 800×500mm, 1000×400mm, and 1200×500mm (excluding cap embroidery).
2. Intelligent Operating System: Our machines feature a 10.1-inch touchscreen computer with an intuitive interface, supporting pattern preview, editing, zooming, and rotation functions.
3. Wide Needle and Thread Compatibility:
· No. 9 needle with 75D thread, suitable for delicate embroidery;
· No. 11 needle with 108D thread, standard embroidery configuration;
· No. 14 needle suitable for special threads such as gold and silver threads.
4. Robust and Durable Structure: The machine weighs approximately 200kg net and 210-220kg gross, with a stable structure and low vibration.
5. Compact packaging: The packaging dimensions are 113×93×95cm, approximately 1 CBM, facilitating transportation and warehousing.
