Product Attributes:
The large embroidery surface design allows for simultaneous multi-head adaptation to large-size embroidery processing, meeting the needs of full-surface embroidery for garments and large-scale embroidery for home textiles.
Intelligent speed adjustment allows multiple heads to precisely control the speed according to the embroidery technique, balancing efficiency and the refinement of the embroidery surface.
Whatapp:+86 18322274128
Email:jcdt04@tjjc-carpet.com

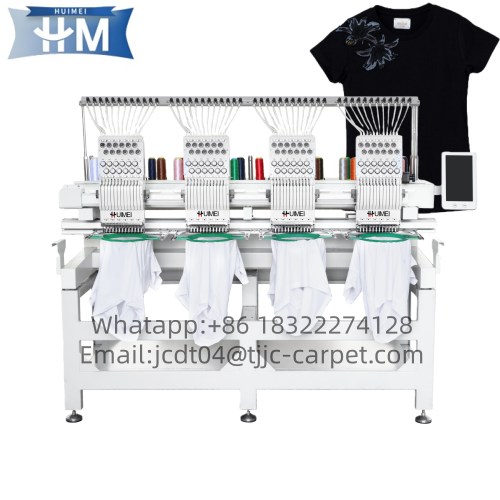

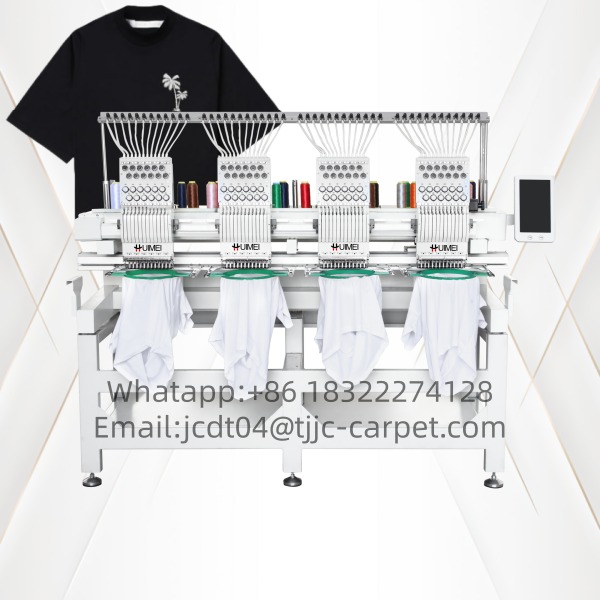

The HM-1204 is a high-performance embroidery machine 4 head suitable for various embroidery techniques, including garment embroidery, flat embroidery, and cap embroidery. This model utilizes a Raynen electronic control system, is equipped with a 10.1-inch touchscreen computer, supports multiple embroidery formats, and features high speed, high precision, and multi-functionality. It is widely used in the clothing, cap, and home textile industries.
Main Functions
1. Multi-process Compatibility: The embroidery machine 4 head supports three embroidery modes: flat embroidery, cap embroidery, and garment embroidery.
2. High Adaptability: Suitable for various fabrics (except for excessively thick or stiff materials).

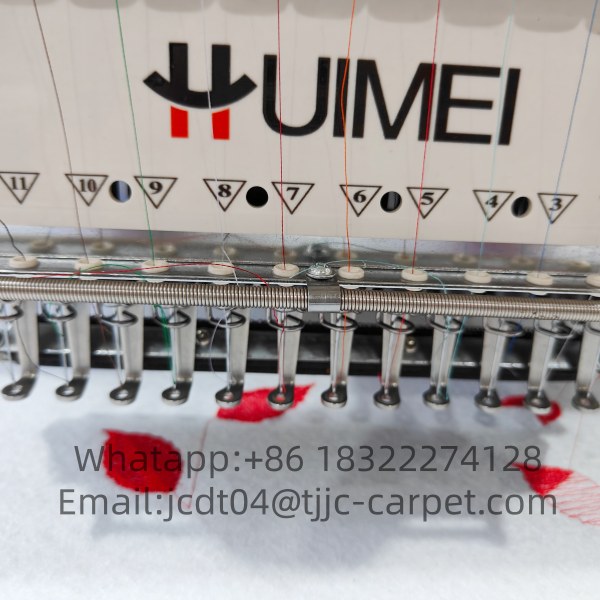

3. High-Precision Embroidery: The embroidery machine 4 head utilizes Japanese Hirose black-heart rotary hooks and Gross needles, resulting in stable and delicate embroidery.
4. Large Capacity Storage: Supports up to 100 million stitches and 800 patterns.
5. High-Speed Operation: Maximum speed of 1200 rpm, with a maximum of 800 rpm for cap embroidery.
6. Multi-Needle Size Support: The embroidery machine 4 head supports needle sizes 9, 10, 11, 12, and 14, with size 11 being the most commonly used.
7. Format Compatibility: Supports multiple embroidery formats including DST, EMB, DSB, and ZSK.
PRODUCT FEATURES
• Four-head independent operation: Simultaneously performs four identical embroidery operations, improving production efficiency.
• Touchscreen operation: 10.1-inch touchscreen computer with a user-friendly interface and simple operation.
• Dual stroke options: Two embroidery ranges, 400×400mm and 400×300mm, to accommodate different embroidery sizes.
• Dedicated configuration for cap embroidery: Standard configuration includes 4 cap drives, 1 hat stand, and 8 cap frames, supporting a 270×60mm cap embroidery range.
• Flexible garment embroidery: Equipped with 5 garment embroidery frames (2 of each size) + 1 flat embroidery frame.
• Voltage adaptive: Supports a wide voltage range of 110V–240V, suitable for different regions.
PRODUCT ADVANTAGES
1. High-Efficiency Production: Four heads operate simultaneously, significantly improving embroidery efficiency.
2. Stable and Durable: Core components use imported brands, ensuring a long service life and consistent embroidery quality.
3. Intelligent Operation: Large-capacity storage, multi-format support, and touchscreen control make it suitable for both batch and customized production.
4. Flexible Adaptability: Supports various embroidery frames and patterns to meet diverse production needs.
5. Energy-Saving and Environmentally Friendly: Power consumption is only 650W, resulting in low energy consumption and economical operation.
6. Global Voltage Compatibility: No additional transformer is required, facilitating export and use in multiple locations.
