Product Attributes:
The one-head embroidery machine features high-speed embroidery capabilities, significantly reducing production time and improving overall work efficiency.
Equipped with a high-precision embroidery system and a user-friendly interface, the one-head embroidery machine can achieve delicate and consistent embroidery effects on a variety of fabrics, enhancing both production efficiency and finished product quality.
Whatapp:+86 18322274128
Email:jcdt04@tjjc-carpet.com

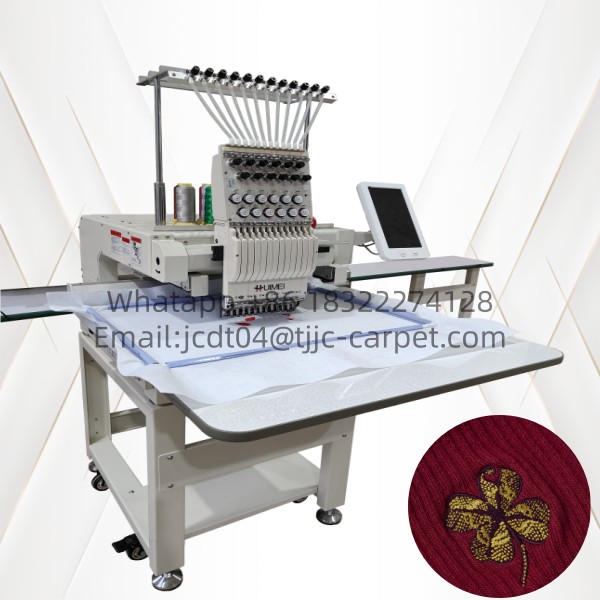

The one head embroidery machine (model: HM-1201) is a multi-functional intelligent embroidery device that integrates flat embroidery, hat embroidery, and garment embroidery. It adopts a high-performance electronic control system and a user-friendly interface, and is widely used in clothing, footwear, home textiles, and other fields. Its compact structure and stable operation, combined with high precision and high speed, make it suitable for small to medium batch orders, personalized customization, and sample development.
Product Features
1. Multi-functional: Our one head embroidery machine supports three modes: flat embroidery, cap embroidery, and garment embroidery, and comes with various embroidery frames to adapt to different embroidery needs.

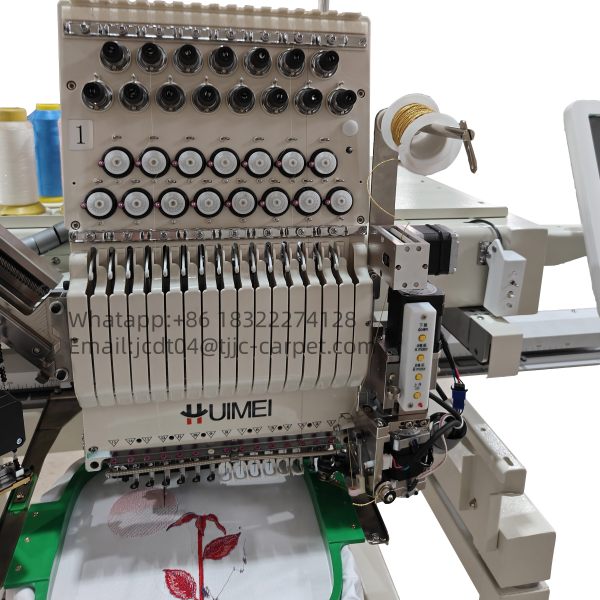

2. High-precision embroidery: Our one head embroidery machine uses Japanese Hirose black-heart rotary hooks and Gross embroidery needles, ensuring delicate and smooth embroidery with a low breakage rate.

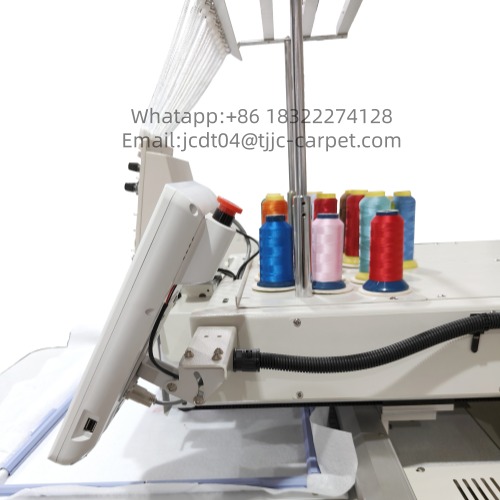

3. Intelligent electronic control system: Equipped with a 10.1-inch touchscreen computer (Raynen Electronic Control), it allows for intuitive operation and supports multiple embroidery formats (DST, EMB, DSB, ZSK, etc.).
4. Large capacity storage: It can store up to 800 patterns and has a stitch count storage capacity of up to 100 million stitches, meeting diverse production needs.
5. Flexible selectable stroke: It offers multiple embroidery stroke options (350×230mm to 1200×500mm) to adapt to different embroidery sizes.
6. Energy-saving and low noise: The one head embroidery machine consumes only 175W of power and operates with low noise, making it suitable for various production environments.
TECHNICAL SPECIFICATIONS
| Project | Parameters | Remarks |
| Embroidery Area | 600×400mm (flat embroidery) | Other strokes optional |

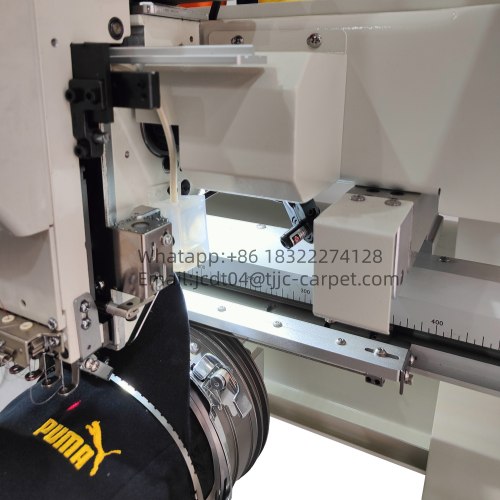

| Hood Embroidery Range | 270×60mm | standard configuration includes cap drive, cap stand, and cap frame |
| Maximum Speed | 1200 RPM (1000 RPM recommended) | 800 RPM recommended for cap embroidery |
| Needle | 12/15 needles optional (standard 12 needles) | Supports 9, 10, 11, 12, and 14 needles |
| Computer System | 10.1-inch touchscreen, Raynen electronic control | one head embroidery machine can connect to USB flash drive to import patterns |
| Voltage | 110–240V (adaptive) | Universal voltage |
| Weight | 210-300kg | Packaging Dimensions: 113×93×95cm |
| Supported Fabrics | Most textile fabrics (not suitable for excessively thick or stiff fabrics) | 3D embroidery effect possible (requires 3D adhesive) |
PRODUCT ADVANTAGES
1. Excellent embroidery effect: Even stitches and smooth lines; supports special threads such as gold and silver threads.
2. High adaptability: Voltage adaptive, suitable for various domestic and international power environments.
3. Comprehensive after-sales support: We provide plate-making software (Smart plate-making software) and technical training services.
4. Stable and reliable: Utilizes high-quality rotary hooks and motors, maintaining excellent performance even after prolonged operation.
