Product Attributes:

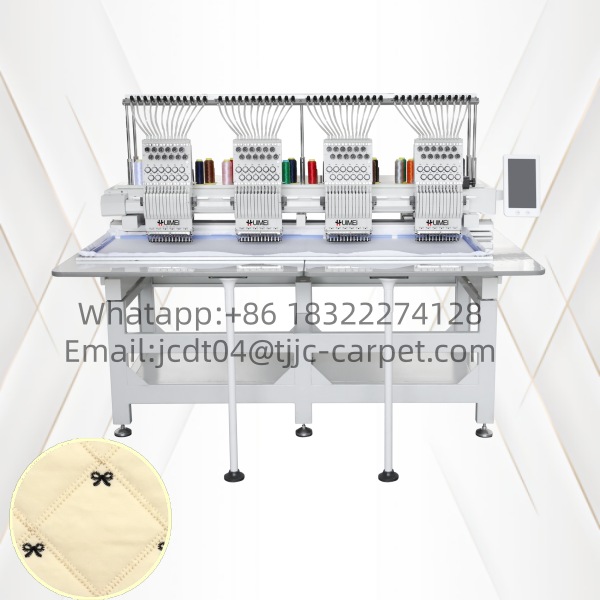

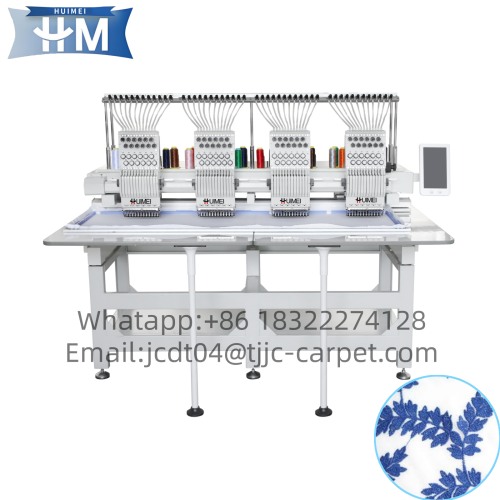

Digital computer multi-heads 12 needles embroidery machine 4 head
The four-head design, combined with a large embroidery area, is suitable for mass production of various products such as garments, hats, and socks.
Equipped with an advanced electronic control system and automatic thread trimming function, it features a low thread breakage rate, precise color changes, stable embroidery quality, and more worry-free operation.
Whatapp:+86 18322274128
Email:jcdt04@tjjc-carpet.com
The HM-1204 embroidery machine 4 head is a modern embroidery equipment that integrates high-efficiency production, multi-functional applications, and intelligent operation. Embroidery machine 4 head adopts an advanced electronic control system and high-quality mechanical components, catering to various embroidery needs such as flat embroidery, cap embroidery, and garment embroidery. Suitable for production and customization in various industries including clothing, hats, home furnishings, and handicrafts, it is a stable, flexible, and easy-to-operate intelligent embroidery solution.
CORE FUNCTIONS
1. Multi-functional Embroidery Capabilities:
Flat Embroidery: Suitable for various flat fabrics, supporting complex patterns and fine lines.
Cap Embroidery: Equipped with a dedicated cap drive and frame, enabling stable embroidery on curved cap surfaces.
Garment Embroidery: Supports partial embroidery on garments (such as T-shirts, polo shirts, etc.), flexibly adapting to finished garment processing.
2. Multi-language Intelligent Control System:
Built-in 26 language interface, easy to switch, adapting to the needs of operators in different regions worldwide.
Equipped with a 10.1-inch touchscreen computer, intuitive operation, responsive, supporting pattern preview, parameter adjustment, and production monitoring.
3. High-Speed and Stable Operation:
Maximum embroidery speed up to 1200 rpm, and up to 800 rpm in hat embroidery mode, balancing efficiency and quality.
Uses Hirose black-heart rotary hooks and Gross needles from Japan, ensuring stable stitches and low breakage rate, suitable for long-term high-load production.
PRODUCT DETAILED CONFIGURATION
| Item | Configuration Details |
| Number of Embroidery Heads | 4 independently controlled heads, capable of simultaneous multi-tasking embroidery |
| Embroidery Area | Optional 400×400mm or 400×300mm (flat embroidery/garment embroidery) |
| Hood Embroidery Area | 270×60mm, specifically designed for hats |
| Needle Configuration | Supports 9/12/15 needles, 12 needles are commonly used, adaptable to different fabrics and threads |
| Common Needle Sizes and Threads | Size 9 needle (with 75D thread), Size 11 needle (with 108D thread, most commonly used), Size 14 needle (with gold and silver thread) |
| Electrical Control System | Reliable electronic control, fast response, high stability |
| Pattern Format Support | DST, EMB, DSB, ZSK and other mainstream pattern making formats |
| Pattern Making Software | Supports Smart pattern making software, strong compatibility |
TECHNICAL FEATURES AND ADVANTAGES
1. High Compatibility and Adaptability:
· Our embroidery machine 4 head support embroidery on various fabrics (except for excessively thick or stiff materials), covering textiles, knitwear, denim, leather, etc.
· Voltage adaptive 110-240V, globally compatible, no additional transformer required.
2. Intelligent Memory and Storage:
· Large-capacity memory supports massive pattern storage, facilitating retrieval and management, improving production continuity.
· Can save embroidery parameters and origin positions, eliminating the need for re-alignment during repetitive operations.
3. Modular Design, Flexible Configuration:
· Standard configuration includes multiple embroidery frames: including hat frames, garment embroidery frames, and flat embroidery frames, which can be quickly switched according to orders.
· Optional 3D embroidery materials (3D adhesive) to expand decorative effects.
4. Energy Saving and Environmentally Friendly:
· This embroidery machine 4 head consumes only 650W of power, resulting in low energy consumption and controllable long-term operating costs.
· Compact structure, small footprint, suitable for various workshop layouts.
