Product Attributes:

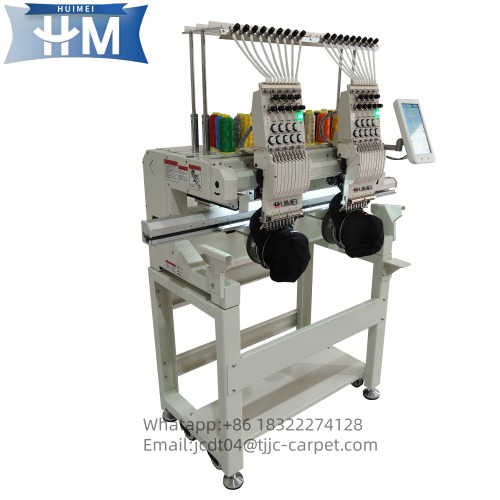

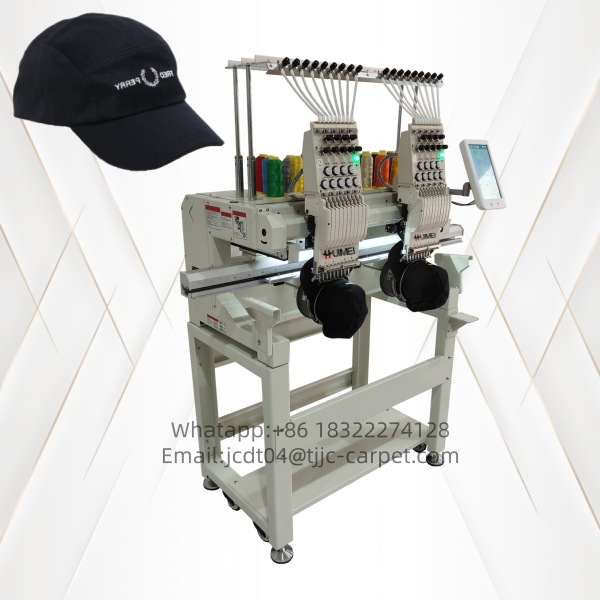

Automatic Two Heads 9 Needles Easy Operate Cap Embroidery Machine
This cap embroidery machine is specifically designed for embroidering curved surfaces on caps, enabling stable and efficient precision embroidery on curved areas such as the cap body and brim.
It is typically equipped with a multi-head synchronous embroidery system and automatic color changing function, significantly improving mass production efficiency and pattern complexity.
Whatapp:+86 18322274128
Email:jcdt04@tjjc-carpet.com
CORE CONFIGURATION AND PERFORMANCE
| Project | Description |
| Machine Structure | Dual-head design, supports synchronous embroidery, improving production efficiency. |
| Embroidery Area | Flat embroidery/garment embroidery: 400×300mm or 500×400mm (optional); cap embroidery dedicated area: 270×60mm |
| Needle | Supports 9/12/15 needles, commonly uses size 12 needles, adaptable to different threads and fabrics. |
| Maximum Speed | 1200 RPM, can still operate stably at 1200 RPM in cap embroidery mode. |
| Control System | Raynen electronic control, 10.1-inch touchscreen, intuitive operation, supports multiple pattern formats (DST, EMB, DSB, ZSK). |
| Storage Capacity | Maximum storage of 100 million stitches, can save 800 patterns, suitable for batch orders. |
| Voltage and Power | 110-240V universal voltage, power consumption only 400W, energy-saving and stable. |
PROFESSIONAL ACCESSORIES AND APPLICABILITY
Rotary Hook System：Our cap embroidery machine uses Japanese Hirose black-heart rotary hooks, which are wear-resistant and durable, ensuring even and stable stitches.
Needle Brand：Standard configuration is Grozne needles, compatible with sizes 9, 10, 11, 12, and 14, with size 11 being the most commonly used.
Thread Compatibility:
| Size 9 needle | logo (75D thread) |
| Size 11 needle | Regular embroidery (108D thread) |
| Size 14 needle | Specialty threads such as gold and silver threads |
Fabric Compatibility: Suitable for most fabrics (not suitable for excessively thick or stiff fabrics), supports 3D embroidery.
FUNCTIONALITY AND EXPANDABLE CONFIGURATION
1. Three Embroidery Modes:
• Flat Embroidery (Standard flat embroidery)

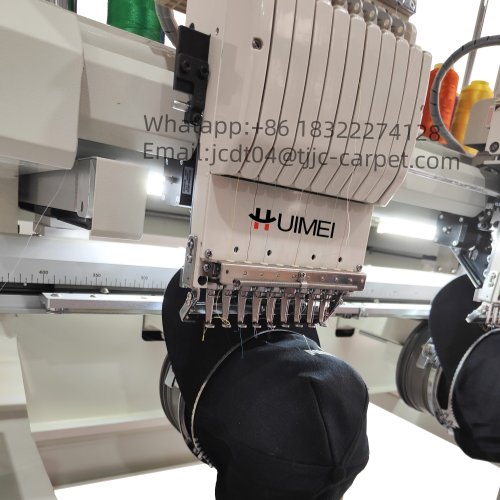

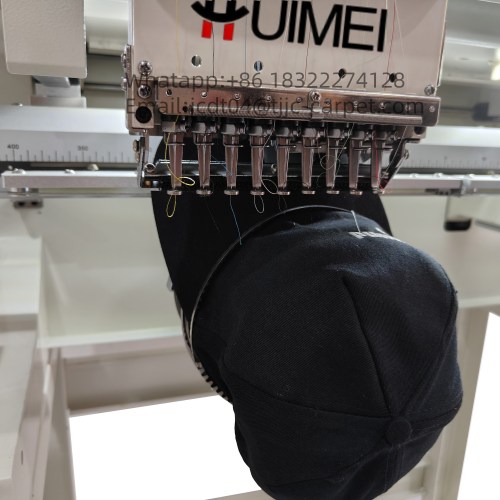

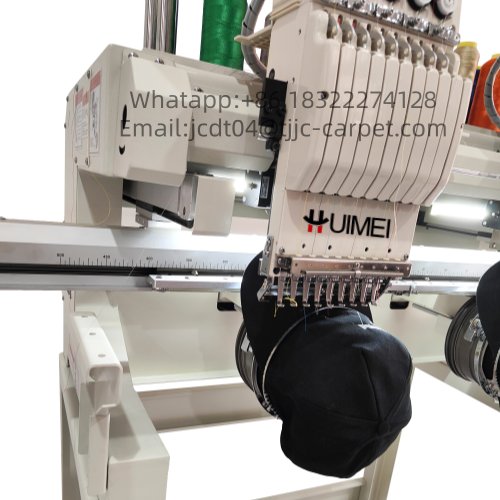

• Cap Embroidery (Equipped with 2 cap drivers, 1 cap stand, and 4 cap frames)
• Garment Embroidery (Standard configuration includes 5 garment embroidery frames, suitable for different garment sizes)
2. Multiple Area Options: In addition to the standard 400×300mm, a wider travel range of 500×400mm or even 800×500mm is available to accommodate larger print sizes.
Our Advantages
1.Our cap embroidery machine features a professional cap embroidery system, specifically designed for cap embroidery, ensuring smooth, skipped stitches on curved surfaces.
2.Our cap embroidery machine boasts a large touchscreen, massive storage capacity, and one-button switching between embroidery modes, lowering the learning curve.
3.The entire machine weighs 300-350kg, with a compact design.
4.We also support customization. Please contact us if you have other configuration requirements.
